DC 5V Remote Controlled Electric Magnetic Solenoid Lock Supplier
Electric Magnetic Cabinet Door Lock Manufacturer
Technical Specifications
| Product Series | Solenoid Lock |
|---|---|
| Model | EM-26114 |
| Voltage | DC 5V |
| Power | 8.3W |
| Versions | With signal feedback / Without signal feedback |
| Cable Length & Connectors | Standard or custom |
| Material | Steel |
| Lock Size (L×W×H) | 42 × 34 × 10 mm |
| Hook Size | 30 mm height |
| Action Form | Push-pull type |
| Net Weight | 0.05 kg |
| Installation Style | Screw fixing |
| Thread Size & Depth | Standard |
| Hi-Pot Test | AC 600V, 50/60Hz, 2s |
| Insulation Class | Class B |
| Package Size / pcs | 42 × 34 × 10 mm |
| Packaging Box Size | Standard: 21 × 14 × 13 cm (Custom accepted) |
Product Features (Manufacturer Perspective)
- Manufactured from high-quality pure carbon steel, with electrophoretic surface coating. This treatment provides excellent corrosion resistance and ensures stable performance in long-term use.
- The locking force elasticity is adjustable, making it suitable for different cabinet door structures. When powered on, the lock triggers instantly and pops open automatically.

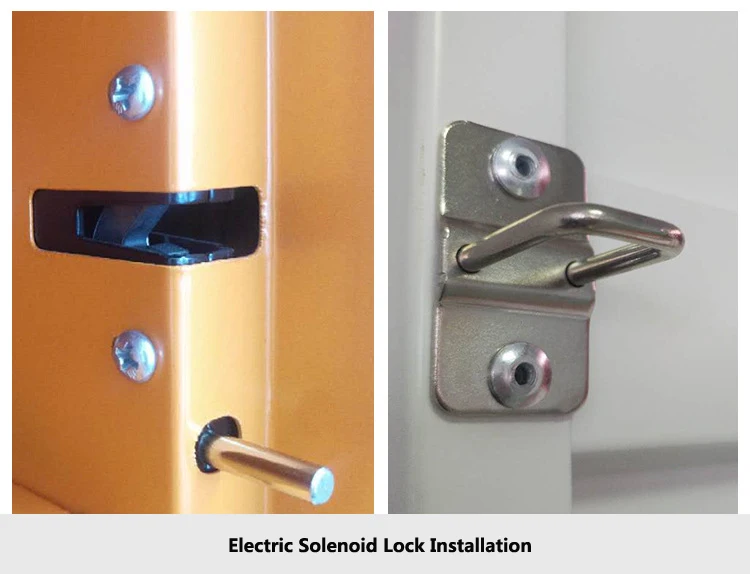

- Compact and symmetrical design allows installation on both left- and right-opening cabinet doors, significantly improving installation flexibility for integrators and OEM customers.
- Independent working mode: power-off keeps the door locked, while power-on triggers instant unlocking, ideal for access control systems and automated cabinets.
- Tested for over 1 million operating cycles under rated working conditions. The locking hook can withstand a pulling force of up to 150 kg without obvious deformation, ensuring long-term reliability and safety.
